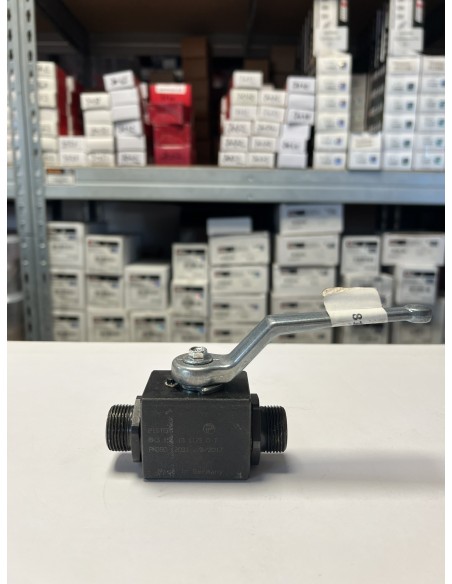

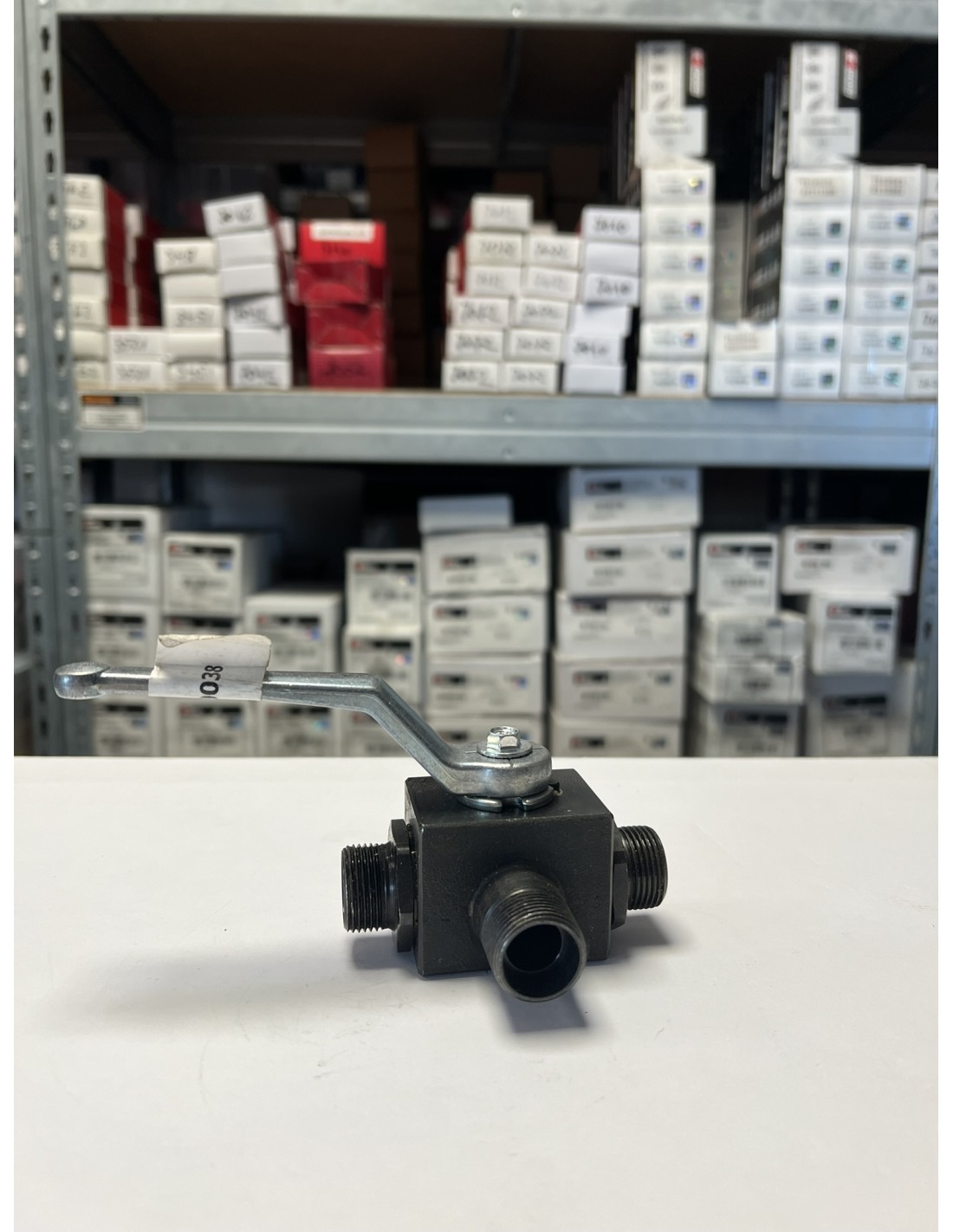

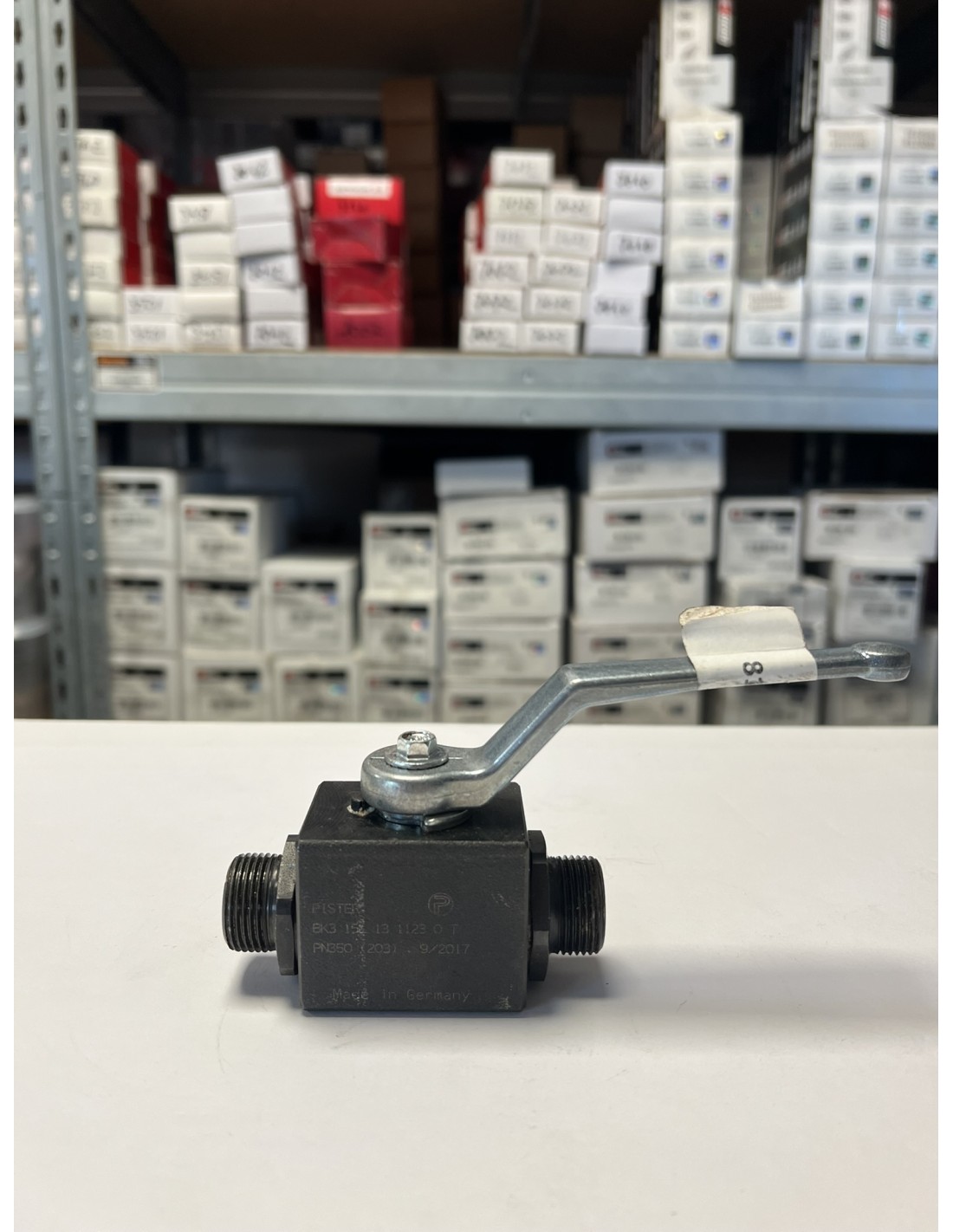

Ball Valve BKH-3T-15L DN12 M22x1.5 mm

• Series: 15 L
• Nominal width: DN 13
• Connection thread: M22x1.5 mm

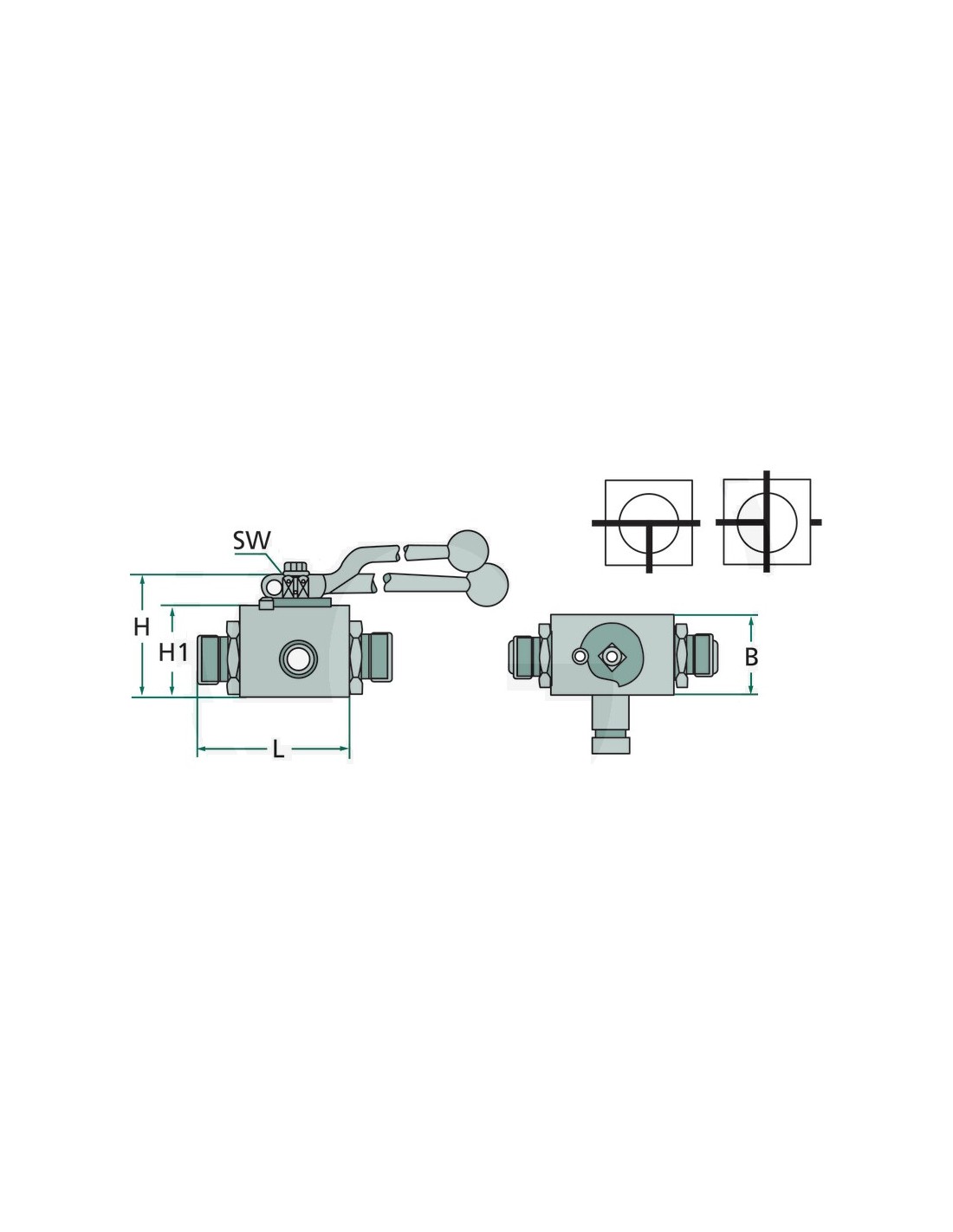

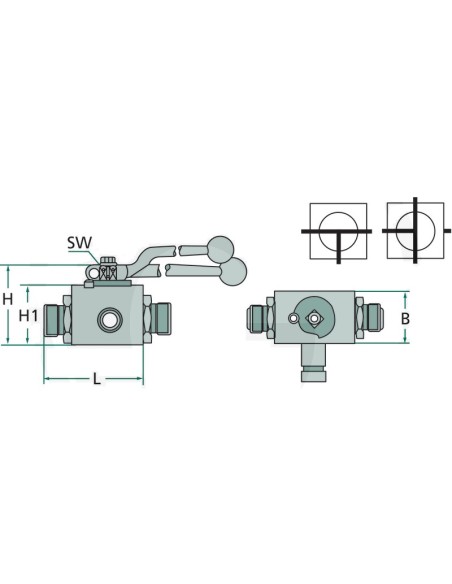

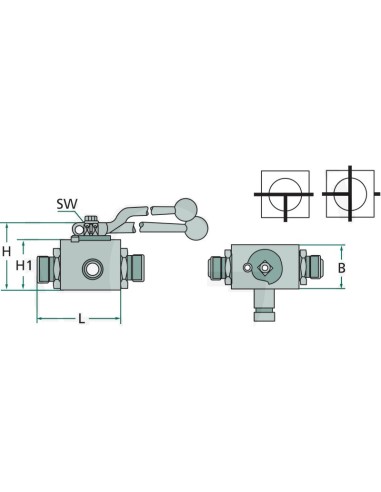

• L (mm): 84
• B (mm): 35
• H (mm): 51
• h1 (mm): 40
• AF: 9
• PN (bar): 350
• H1 (mm): 40
• Menke-Nr.: 27665
• Connection 1 - 3: cylindrical metric male thread
• Seal type 1 - 3: 24° internal taper
• Hole: T-shaped
• Switching travel: 0°, 90°
• Operating temperature: -10°C to +80°C
• Material: housing, ball and stem made of steel, ball seal made of polyamide, O-ring made of NBR
• Surface protection: galvanised, Surface verzinkt

Strautmann Series Vitesse 160E, Vitesse 185, Vitesse 185DO, Vitesse 185E, Vitesse 230, Vitesse 230DO, Vitesse 230E, Vitesse 260, Vitesse 260DO, Vitesse 260E, Vitesse 320, Vitesse 400E
