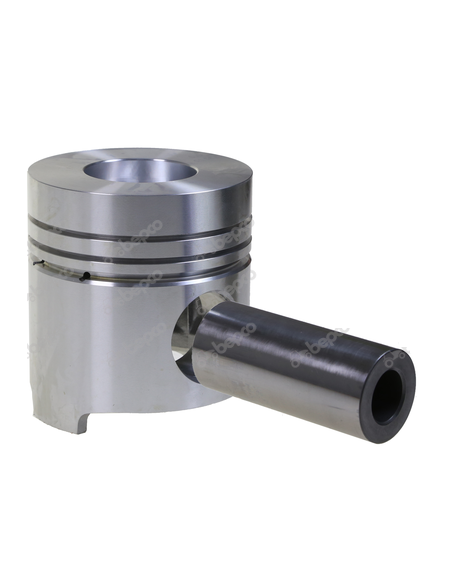

Piston Ø 100 mm - STD
1940174 - EMISSIONED ENGINE D3833
1940174 - Piston Ø 100 mm - STD
- Type N4
- Bore 100.00
- Piston rings 3
- Al-fin n
- A (mm) 65.30
- B+ / B- (mm) 20.20
- D (mm) 108.65
- E (mm) 38.00
- F (mm) 44.75
- Case-IH Tractor AVJ AVJ55, AVJ70. JX JX55 (>13286), JX75 (>13286). JXU JX70U. VJ VJ70
- Fiat Tractor 86 55-86F, 55-86FDT, 55-86SV, 55-86SVDT, 55-86V, 55-86VDT
- Ford Tractor 10S 3010S. 30 3830 (2WD). 35 4835
- New Holland Tractor 10S Series 3010S (Emissionised engines). TDD TD55D, TD75D. TL TL100, TL70, TL80, TL90
- Iveco Engines 8045.25 (Tier1), 8045.05 (Tier1), 8045.06 (Tier1), 8035.06, 8045.05 (FPT), 8045.06, 8045.25K, 8035.05
54/33-270
